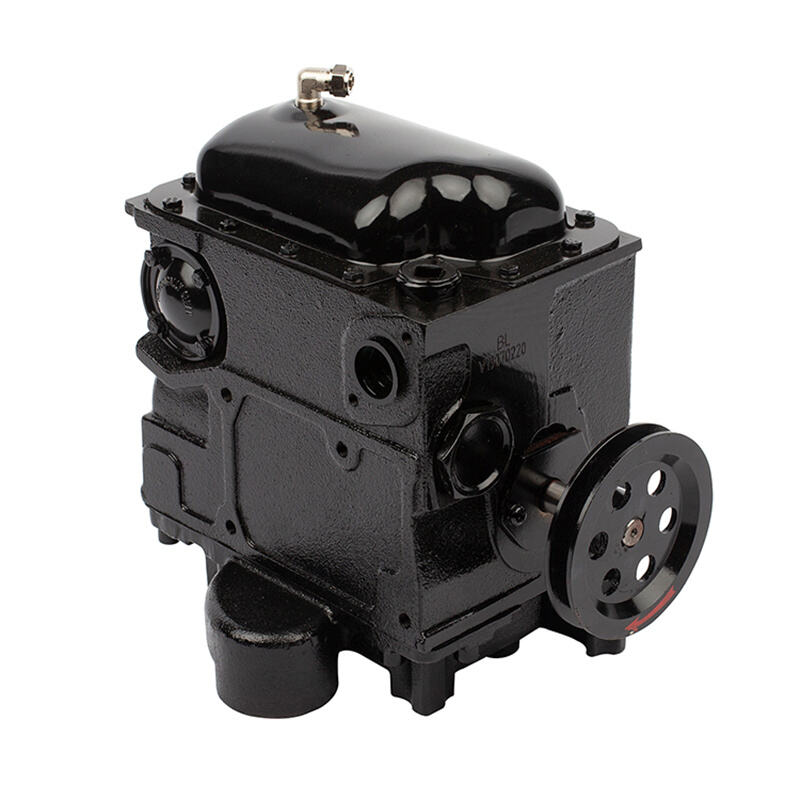

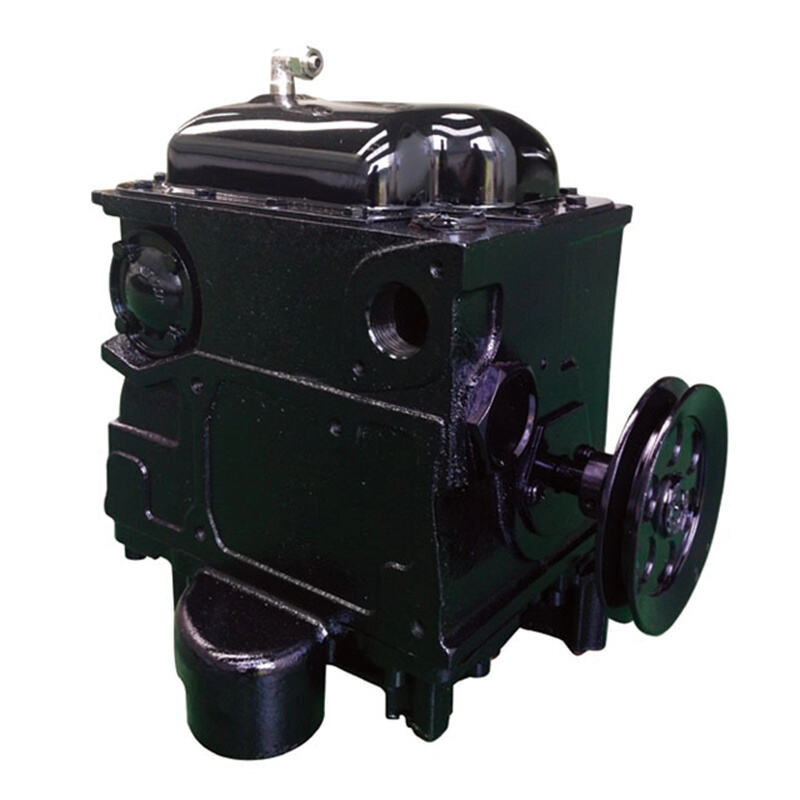

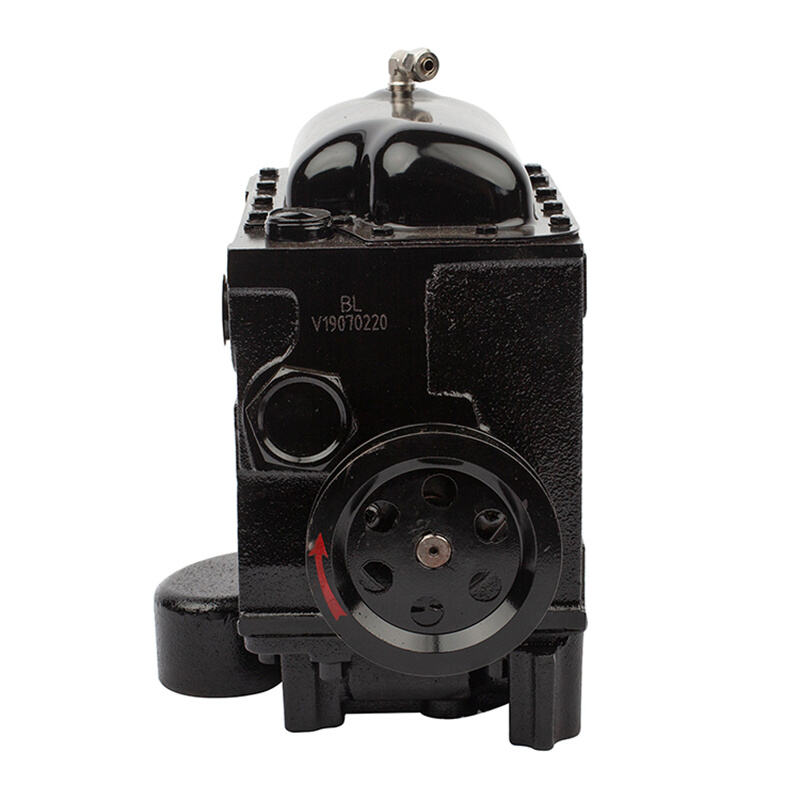

Gear Pump ZCP-TK2
Gear pump ZCP-90 is made by low-pressure casting aluminum for pumping gasoline, diesel, kerosene, etc, with built-in air eliminator, bypass valve, check valve, inlet & outlet filter.
- Technical parameters
- Recommended Products
Technical parameters
| Model | ZCP-TK2-A | ZCP-TK2-B |
| Speed | 900rpm | 900rpm |
| Flow rate | 45~55L/min | 75~85L/min |
| Vacuum | ≥0.06MPa | ≥0.06MPa |
| Working pressure | 0.18~0.24MPa | 0.18~0.24MPa |
| Package | 1pc/ctn | 1pc/ctn |
| N.W. | 37kgs | 37kgs |
| G.W. | 42kgs | 42kgs |
| Meas. | 40*30*28cm | 40*30*28cm |
