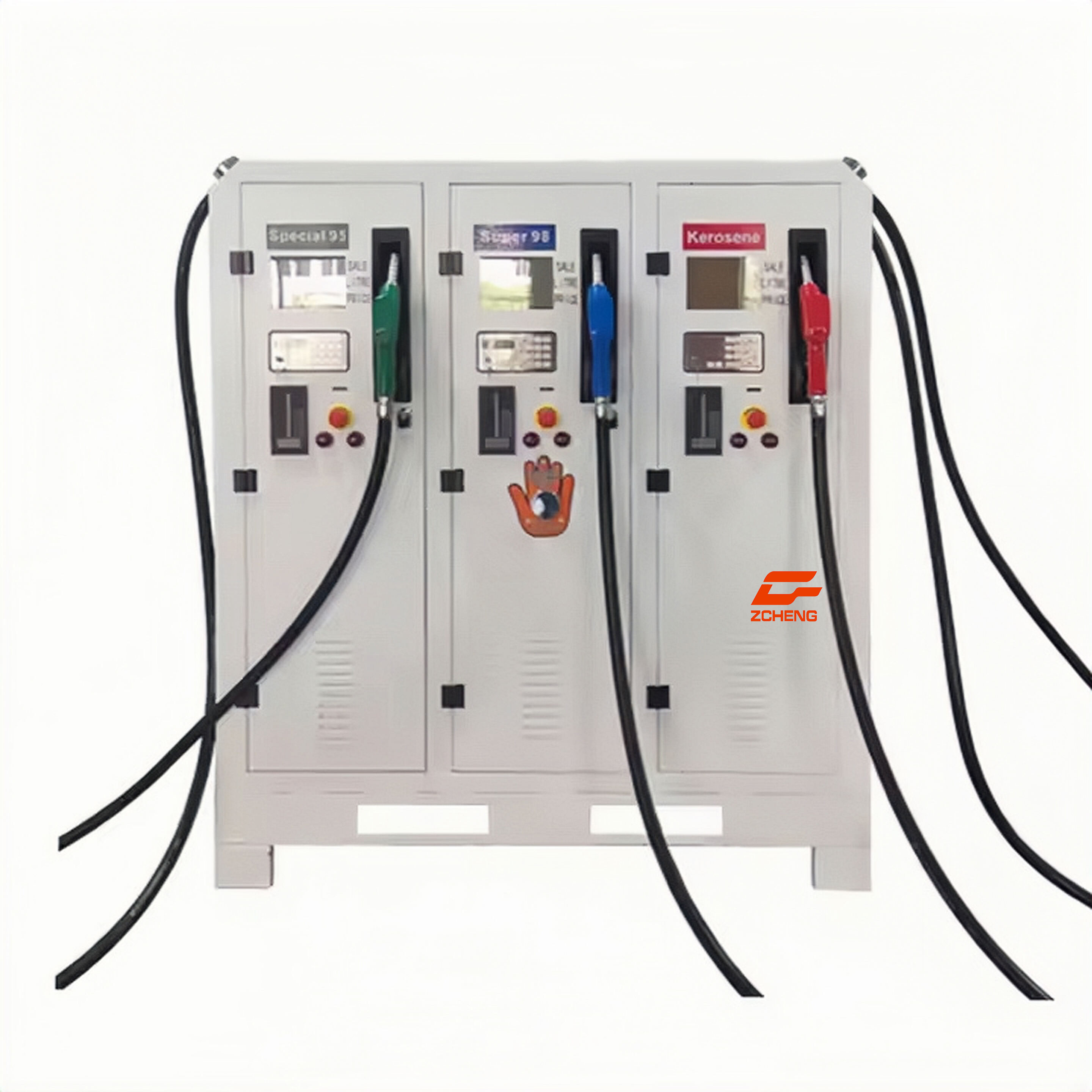

Horizontal Style
Smart container fuel station offers easy installation, high safety, and customizable configurations. With multiple capacities and functions, it's perfect for businesses seeking flexible, reliable, and mobile fueling solutions!
- Technical parameters
- Competitive Advantage

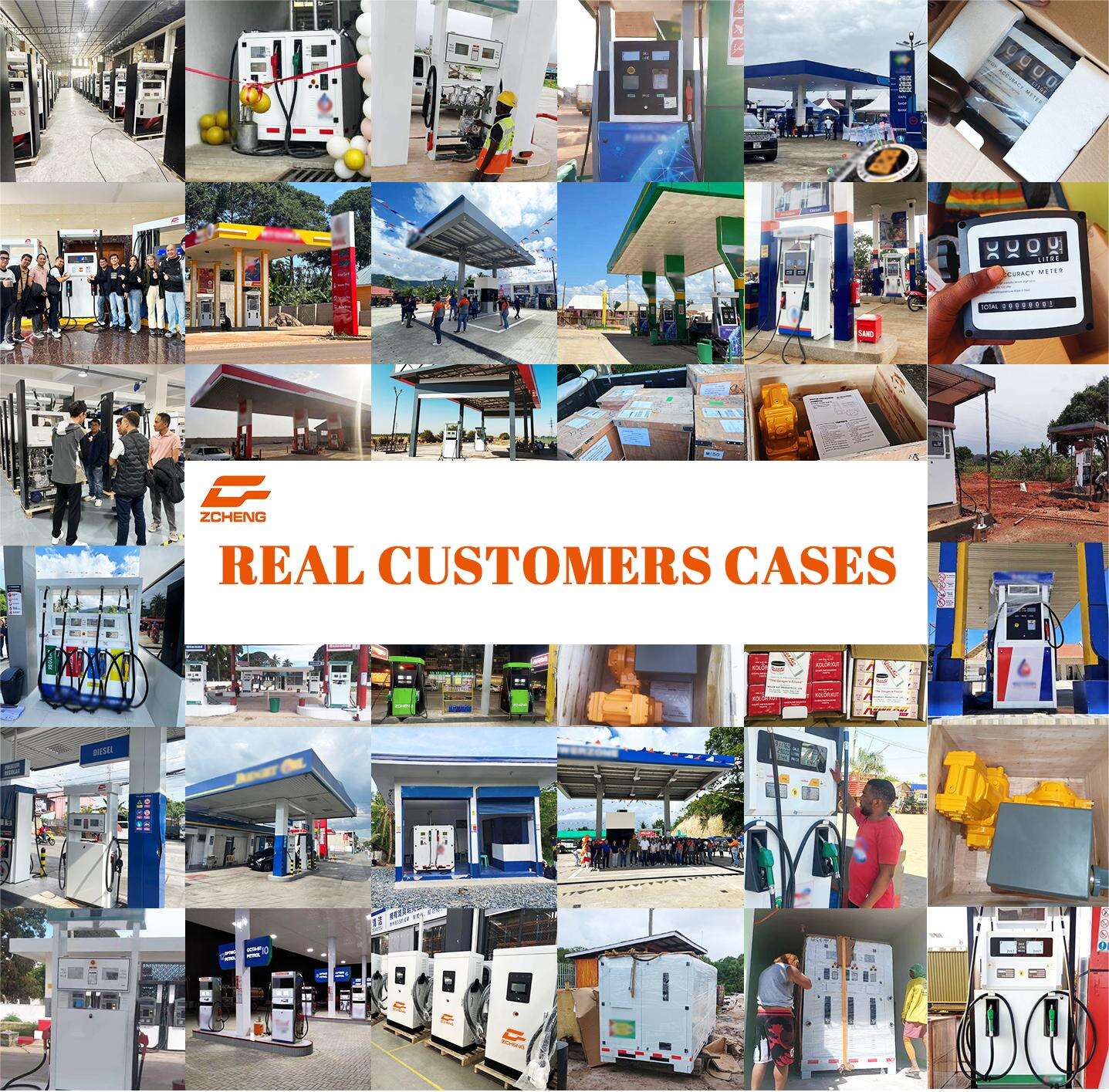

- Applications
- Recommended Products
Technical parameters
| Flow rate | Standard(gasoline/diesel): 20~40L/min | ||
| Ambient temperature | -25℃~+ 55℃ | ||
| Accuracy | ±0.3% | ||
| Electronic controller | ZC-A, ZC-B, ZC-C(installed at non-hazardous area) | ||
| Sale, litre and price indication |
Sale (8 digits):999.999.99 Litre (8 digits):999.999.99 Price (5 digits):999.99 Decimal postion can be changed according to local market requirements |
||
| Backlight of LCD display | White, blue | ||
| Totalizer | 7 digits (electromagnetic), 12 digits (electronic) | ||
| Kaypad | Normal. keypad P1-P4 Sale and litre preset can be set on keypad |
||
| Pulser | 60 pulses, 100 pulses, 200 pulses (per circle) | ||
| Ex-pump | Sound proof, 12V124V1220V1380V | ||
| Meter | 4-piston | ||
| Flow control valve | Solenoid valve(dual coil) | ||
| Filter | External | ||
| Hose | 3m, 4.5m(customized length), hose reel (optional) | ||
| Nozzle | Automatic(various models are optional) | ||

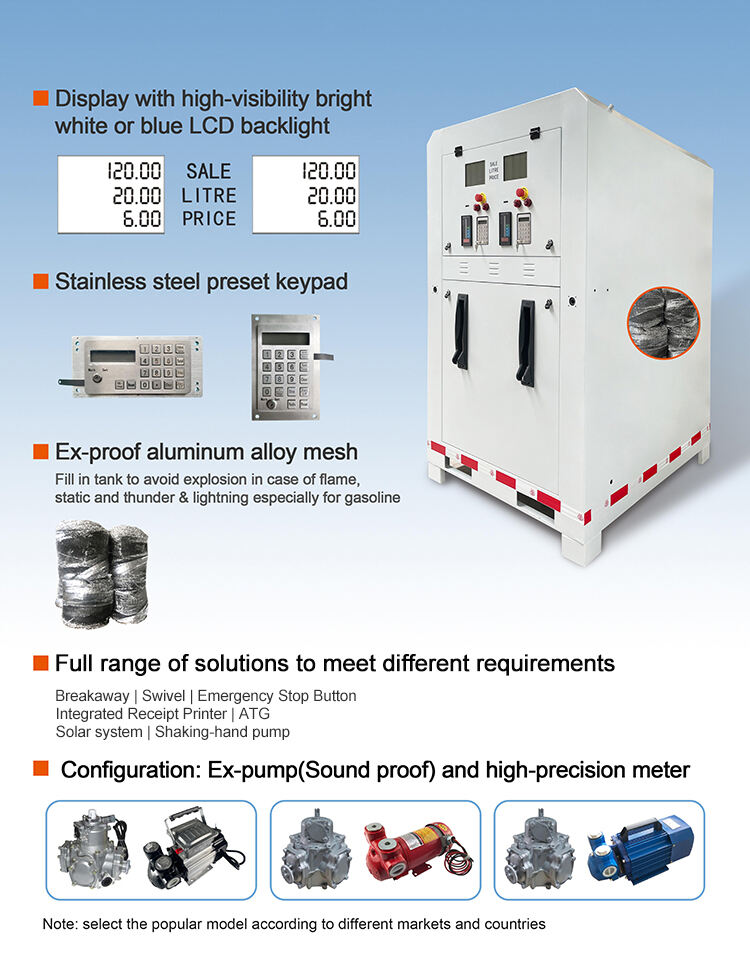

Main Configuration
⚪ Display with high-visibility bright white or blue LCD backlight
⚪ Stainless steel preset keypad
⚪ Ex-proof aluminum alloy mesh
⚪ Full range of solutions to meet different requirements
⚪ Configuration: Ex-pump(Sound proof) and high-precision meter

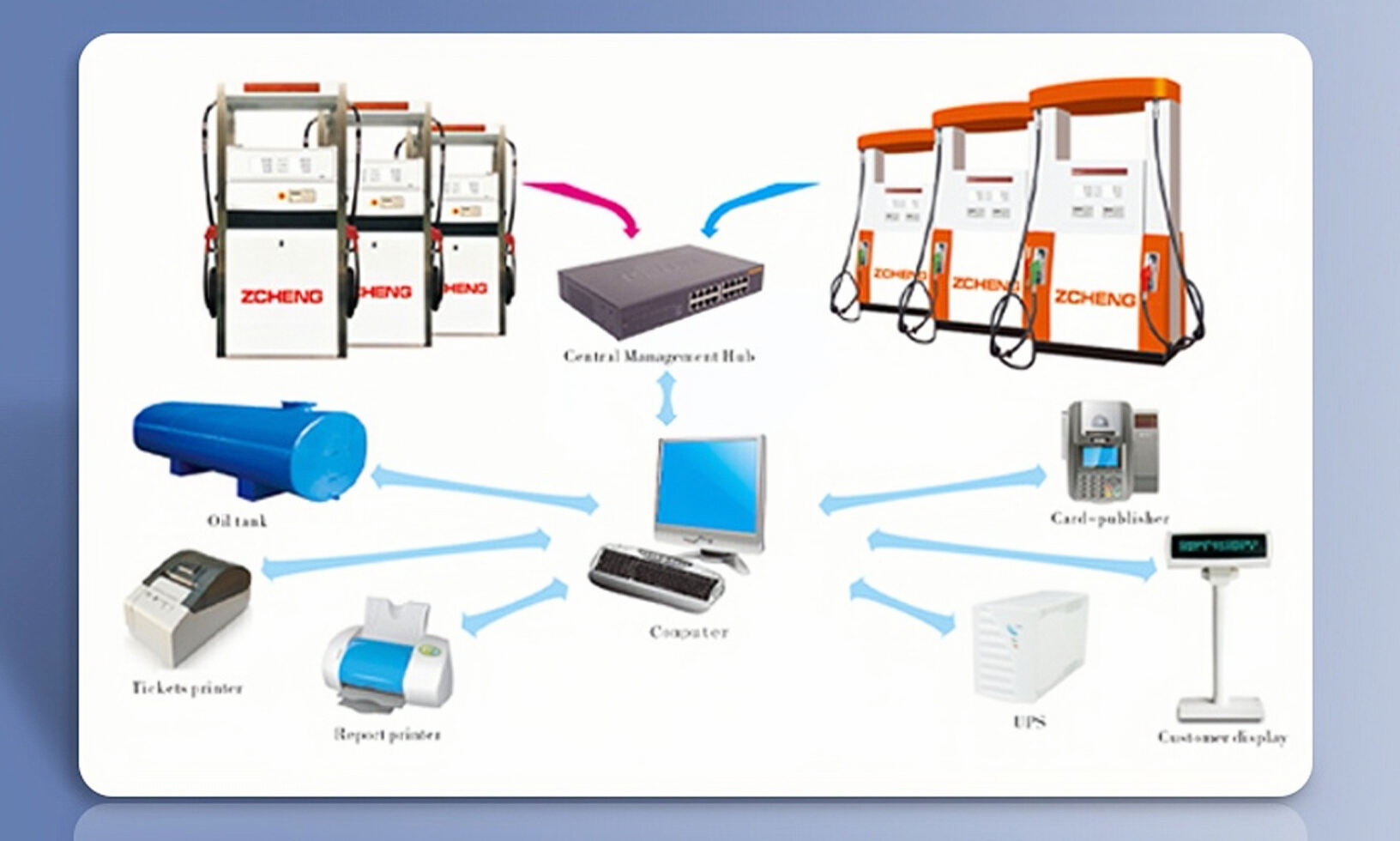

Full Products Functions
Remote app monitor system
IC Card retail system
RFID retail system
Tank gauge system
Bank card fueling payment system pinter, Voice announcer, scaner
Welcome LED screen and mutil-player TV

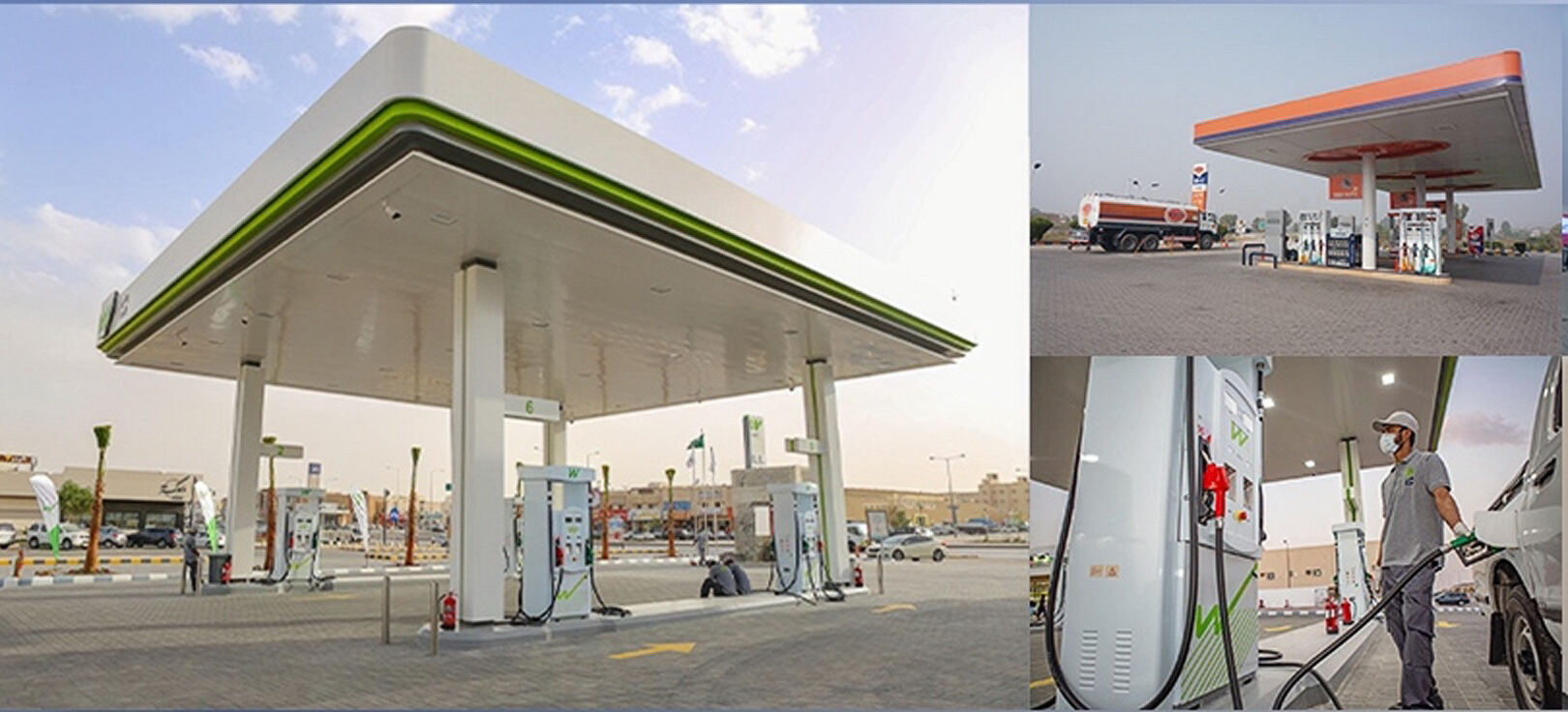

Customized Design And Service
Dispenser outlook customized design
Station price sign customized design
Station canopy customized design
Pos managment system customized design
Full Products Certificate Approval
OIML Standard Accuracy
Software Copyright
CNEX COC,SONCAP,ISO and CE
