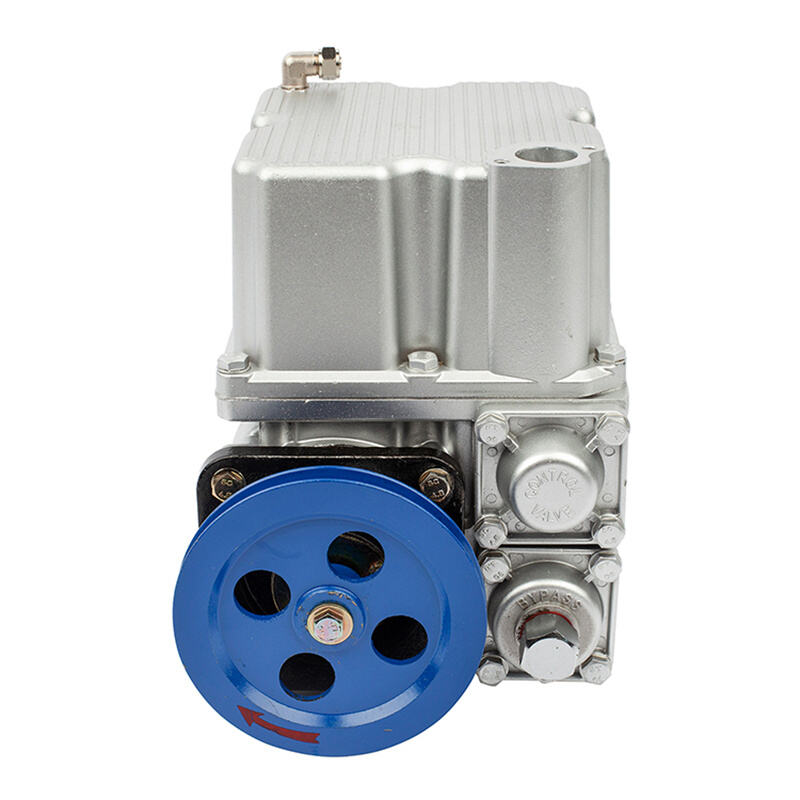

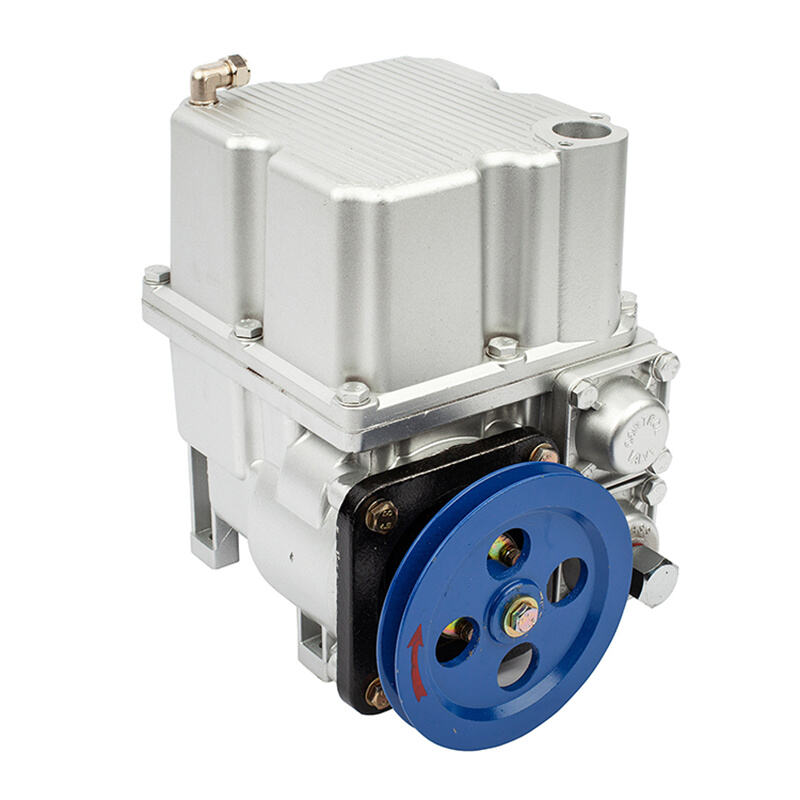

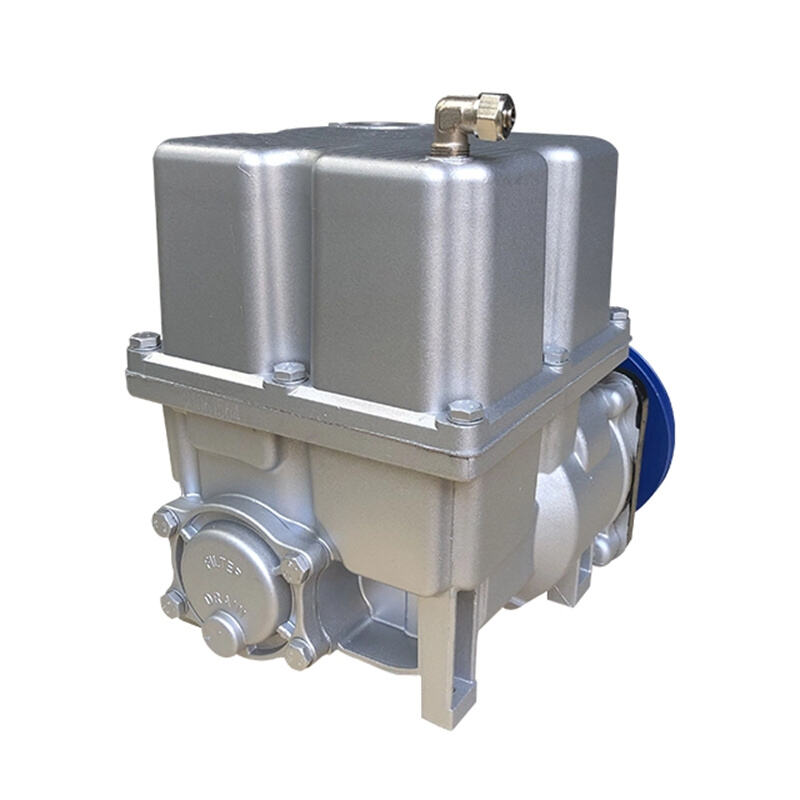

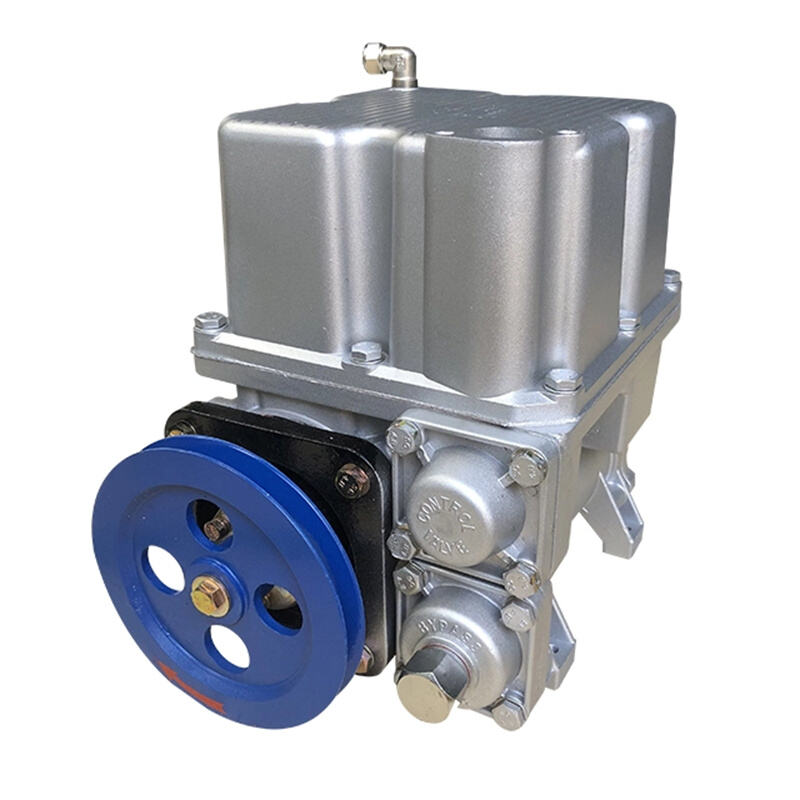

Vane Pump ZCP-50-B
Vane pump ZCP-50-B, ZCP-80-B with built-in air separator, bypass valve, filter.
With the advantage of low noise, high flow rate, long life services, etc.
- Technical parameters
- Recommended Products
Technical parameters
| Model | ZCP-50-B | ZCP-80-B | ||||
| Speed | 630rpm | 630rpm | ||||
| Flow rate | 45~65L/min | 75~85L/min | ||||
| Vacuum | ≥0.054MPa | ≥0.054MPa | ||||
| Working pressure | 0.16~0.2MPa | 0.2~0.25MPa | ||||
| Package | 1pc/ctn | 1pc/ctn | ||||
| N.W. | 16kgs | 16kgs | ||||
| G.W. | 16.5kgs | 16.5kgs | ||||
| Meas. | 36*26*37cm | 36*26*37cm | ||||
