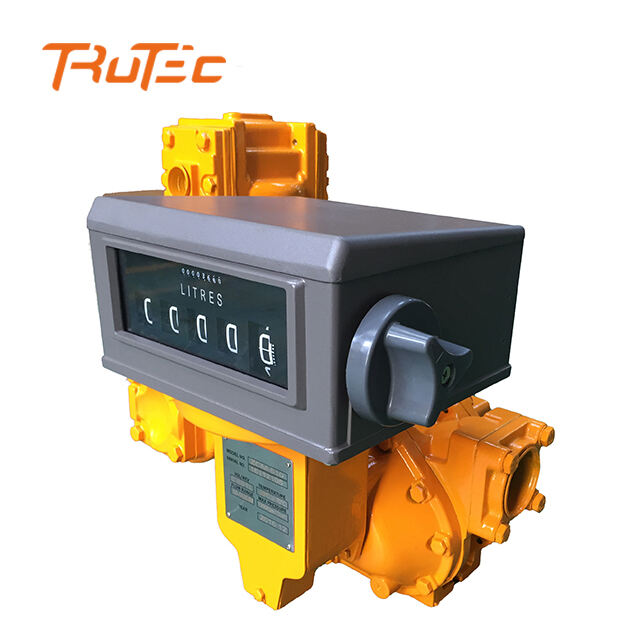

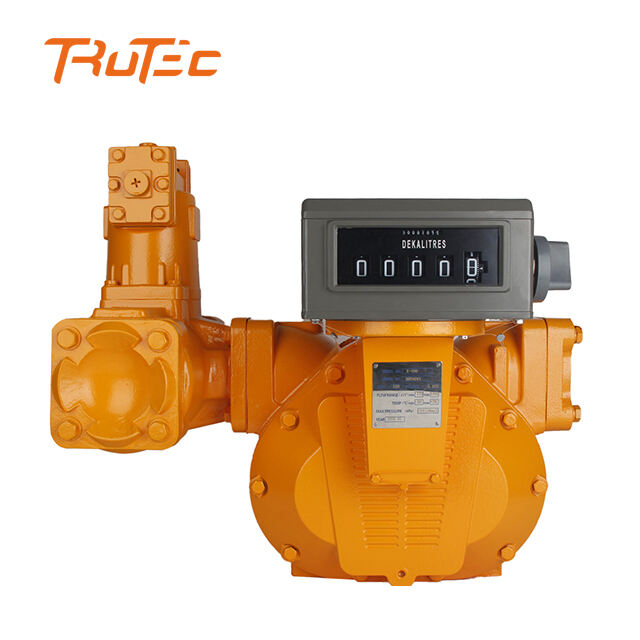

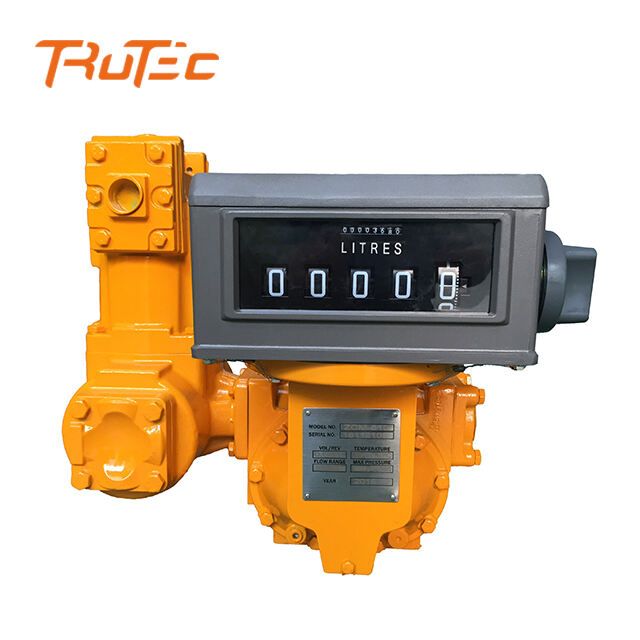

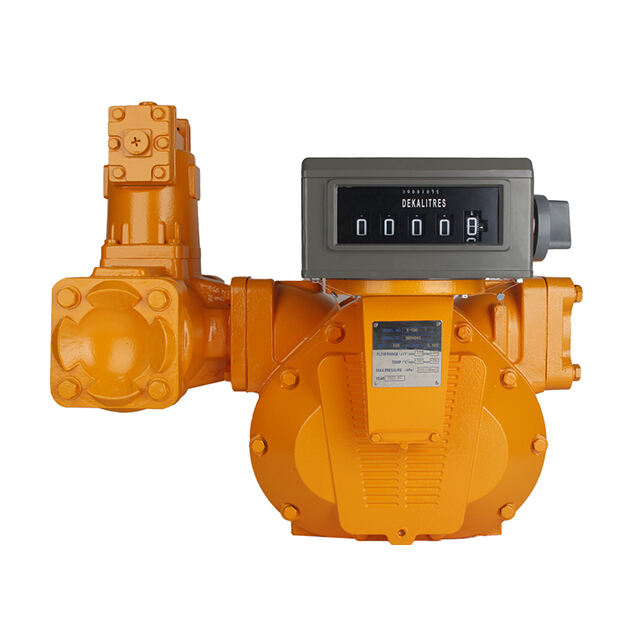

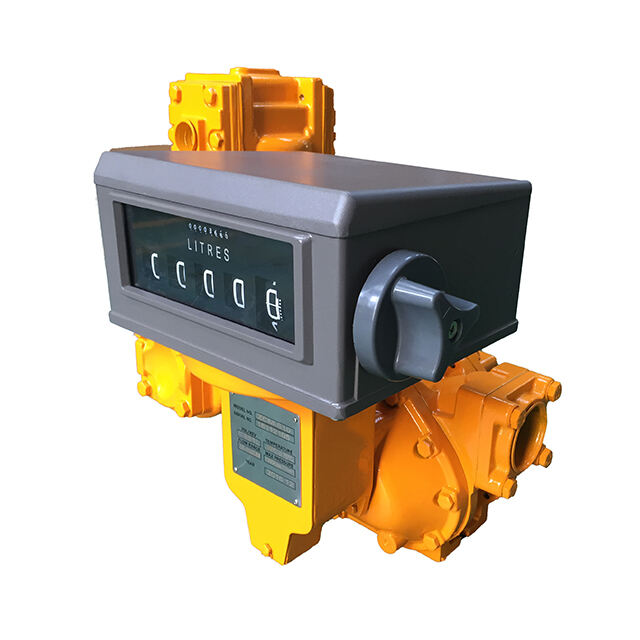

Positive Displacement Flow Meter ZCM-610
Excellent stepless adjusting mechanism allows a micro adjustment of the meter.
High accuracy and repeatablility over the widest range of flow, superior accuracy at constant flow.
Low maintenace, no metal-to-metal contact in measuring chamber, long life service.
Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
Choice of aluminum, cast iron and stainless steel materials of construction.
- Technical parameters
- Recommended Products
Technical parameters
| 40mm/1.5" | 50mm/2" | 80mm/3" | 100mm/4" | 150mm/6" and 100mm/4" for option | ||||
| 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
| 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | ||||
| 20Bar | ||||||||
| ±0.2% | ||||||||
| ≤0.05% | ||||||||
| Liter/US Gallon/IMP Gallon | ||||||||
| 1pc/wooden case | ||||||||
| 23kgs | 26kgs | 40kgs | 70kgs | 130kgs | ||||
| 35kgs | 38kgs | 55kgs | 90kgs | 155kgs | ||||
| 54x46x48cm | 54x46x48cm | 58x50x56cm | 76x64x72cm | 80x65x79cm | ||||
