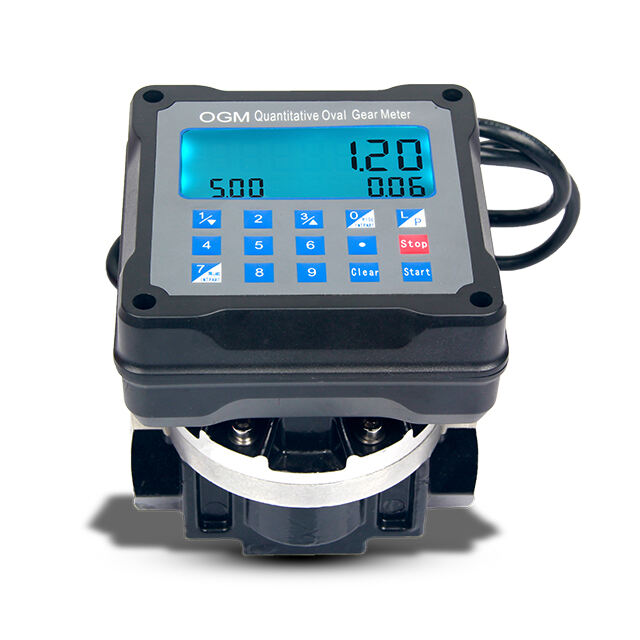

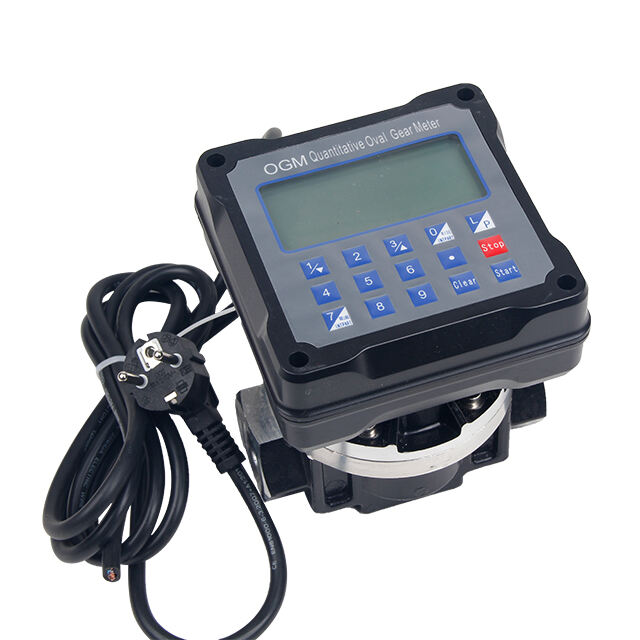

Oval Gear Meter ZCOGM-Q
Aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, applying in the petroleum, chemical, food industry, etc.
Compact size, easy maintenace
Easy to read and operate digital display
Horizontally and vertically flexibility of installation options
Low pressure drop
- Technical parameters
- Recommended Products
Technical parameters
| Size | 1" | 1.5" | 2" |
| Flow rate | 200L/min | 250L/min | 300L/min |
| Accuracy | ±0.5% | ||
| Repeatable tolerance | ≤0.17% | ||
| Max.viscosity | 1000CPS | ||
| Max.operating pressure | 3.4MPa | 1.8MPa | 1.8MPa |
| Package | 4pcs/ctn | 2pcs/ctn | 2pcs/ctn |
| material | cast aluminium | ||
| N.W. | 8kgs | 13kgs | 14kgs |
| G.W. | 9Kgs | 14Kgs | 15Kgs |
| Meas. | 35x35x23cm | 40x23x41cm | 49x28x25cm |
