Maker Series

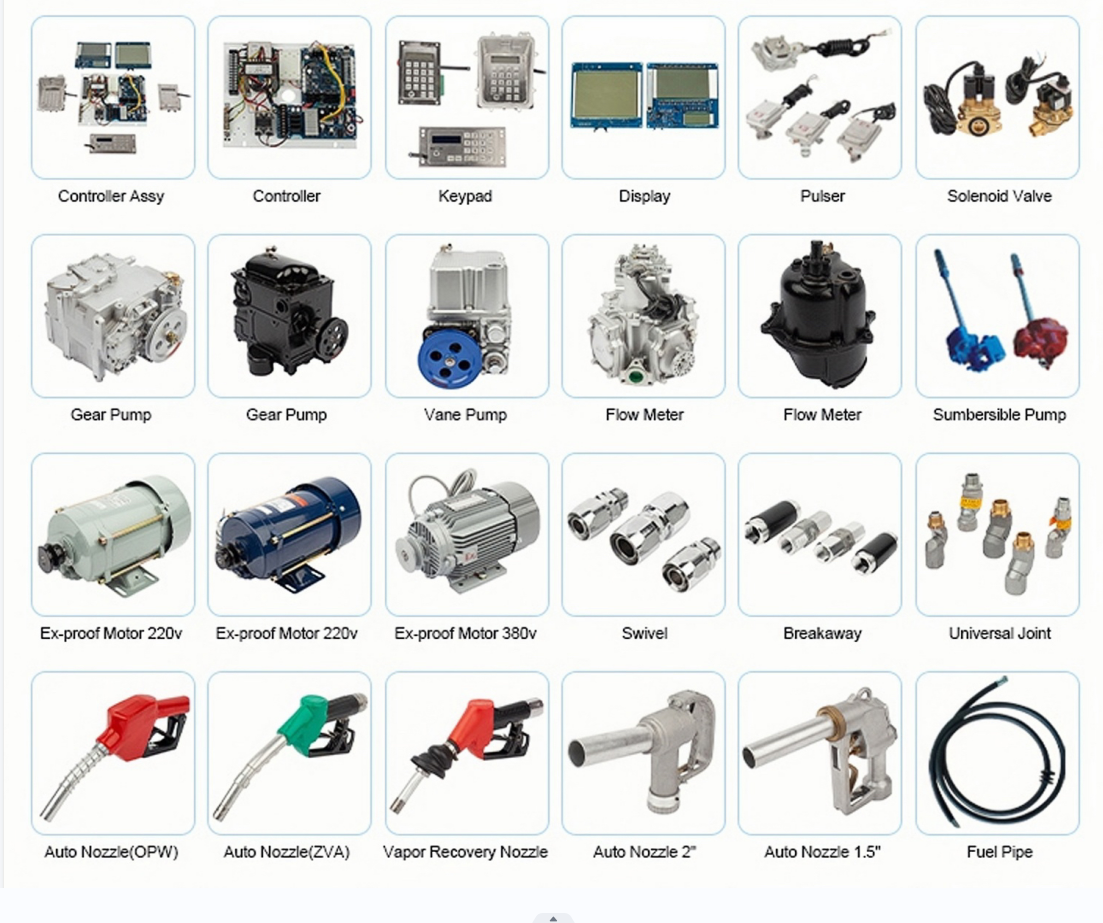

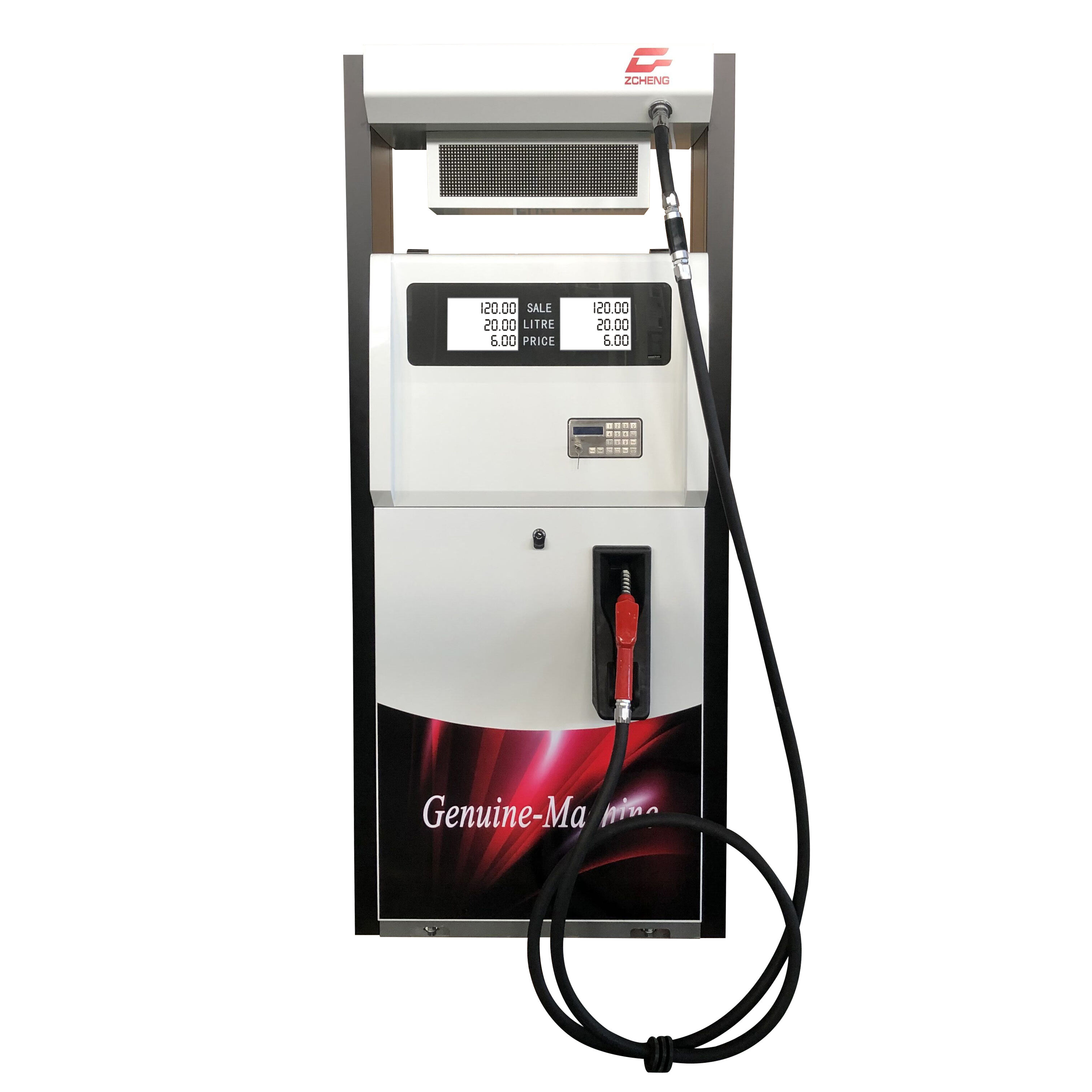

Standardly, fuel dispenser contains electrical controller, display board, keyboard, totalizer, pulser, solenoid valve, flow meter, pump, motor, hose, nozzle and nozzle holder.
For controller, we have three types, type A, type B and type C, which can be assembled in a box, or easy way assembling for easy maintainance. Based on type A,we developed type B, B is equipped with big memorizer and is programmed with more functions. Above all, it can keep 2000 times fueling data.
For display we have separated types, 2 in 1 type and 3 in 1 type for optional.

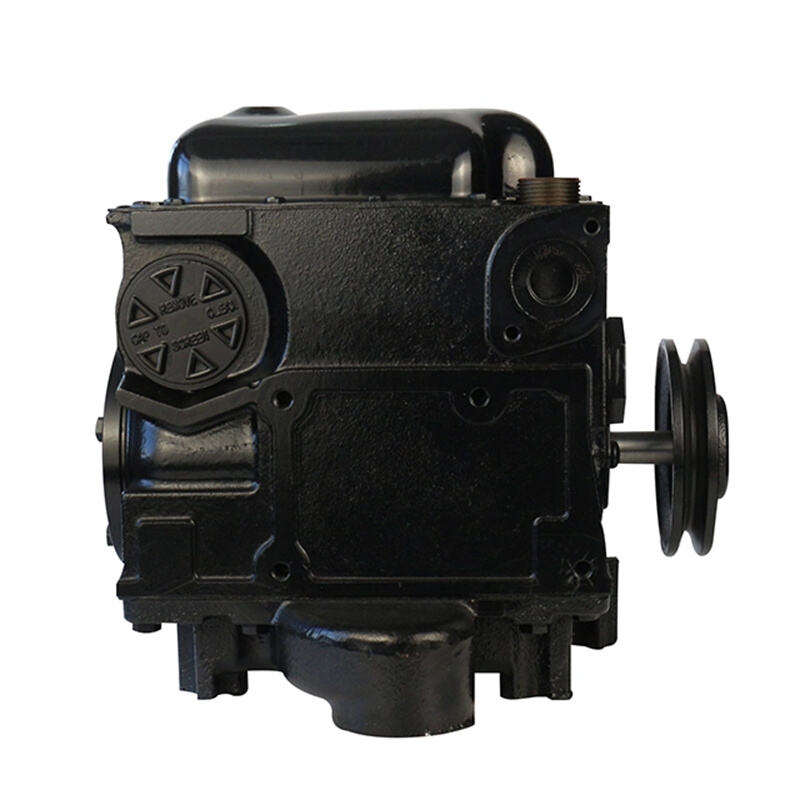

Pump and flow meter, the most popular types are Tokheim, Tatsuno and Bennett, you can choose anyone per your like, besides, submersible type is also available.
For motor, basically 220V and 380V are the most popular configuration, but if you need 12V or 24V, we would like to recommended you some other smaller size design.
Concern nozzle, there are a lot of ifferent types, such as OPW types, Tatsuno types, ZVA types, of which you need, we’re glad to satisfy you with your choice.
- Technical Parameter
- Overview
- Recommended Products
| Ambient temperature | -25°C~ +55°C |
| Humidity | ≤90% |
| Flow rate | 5~60L/min or 5~90L/min |
| Nozzle | Auto shut-off |
| Suction distance | 6m(Vertical), 50m(horizontal) |
| Accuracy | ±0.30% |
| Repeating tolerance | ≤0.15% |
| Hose | 3m(low hang), 4.5m(high hang) |
| Inlet pressure | ≥54kPa |
| Outlet pressure | ≤0.3MPa |
| Voltage | 110V/220V/380V (50/60Hz) |
| Power | 1HP(0.75kw) |
| Noise | ≤80dB(A class) |
| Unit price range | 0.01~999.99 |
| Single volume range | 0.01~999999.99 |
| Accumulative volume range | 0.01~9999999999.99 |
| Explosion-proof signal | ExdmbIIAT3 |

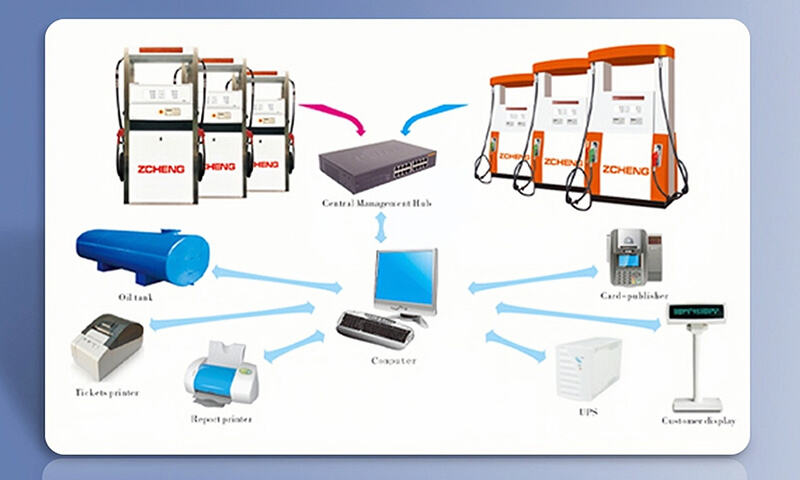

Full Products Functions
Remote app monitor system
IC Card retail system
RFID retail system
Tank gauge system
Bank card fueling payment system pinter, Voice announcer, scaner
Welcome LED screen and mutil-player TV

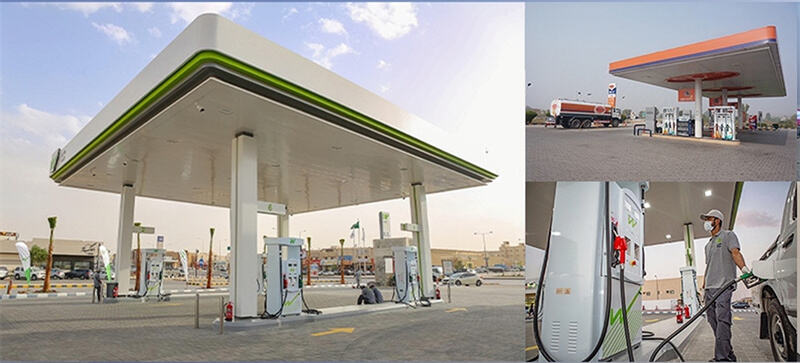

Customized Design And Service
Dispenser outlook customized design
Station price sign customized design
Station canopy customized design
Pos managment system customized design
Full Products Certificate Approval
OIML Standard Accuracy
Software Copyright
CNEX COC,SONCAP,ISO and CE
Main Configuration
Novel and compact design
Electronic controller
High accurate meter pump filtering system to ensure clean fuel and dispenser long lifetime totalizer
Big LCD display board
Meta keyboar

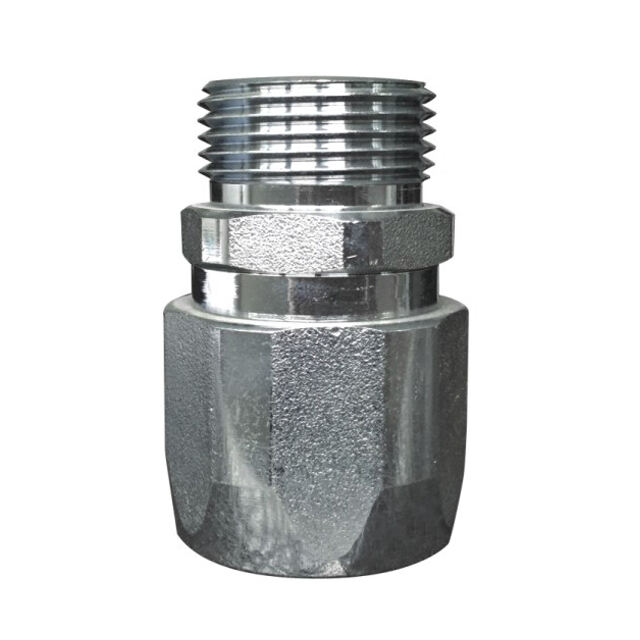

Breakaway swivel
Emergency stop button
Integrated receipt printer LED rolling display
Media player and TV
