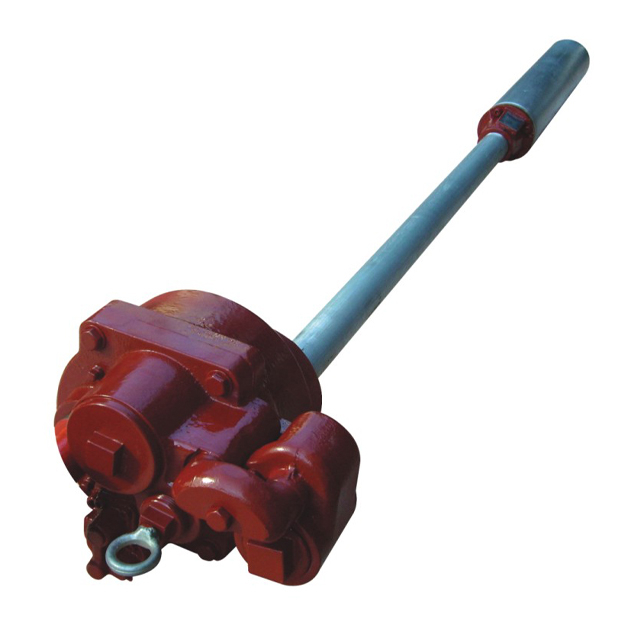

Submersible Pump ZCSP-250L-R

Availability:
Quantity:

Product Description

Compact structure, low noise, long time service
Simple and safe electrical connections.
Easy installation and maintenance.
Built with check valve, bypass valvev acuum valve
For diesel, gasoline, kerosene, etc.
Solve the pumping problem caused by oil gasfication

Technical Parameter
Ambient temperature-25°C ~ +55°C
Rating pressure0.1MPa
Max. flowrate250L/min
Rated voltageAC 220V/380V
Motor rated speed2820rmp
Rated current9A/220V3.5A/380V
Rated Power0.55kW/3/4HP1.1kW/1.5HP
Adjustable pressure21KPa~207KPa
Factory Pressure Range79KPa~93KPa
Working pressure>34KPa
Ex-proof classExd IIbT4
Noise≤68dB(A)
Fixation threadNPT 4"
InletNPT 1.5"
OutletNPT 2"
Package1pc/2ctns
N.W.47.5kgs
G.W.53.5kgs
Meas.38x31x38cm81x21.5x21.5cm
