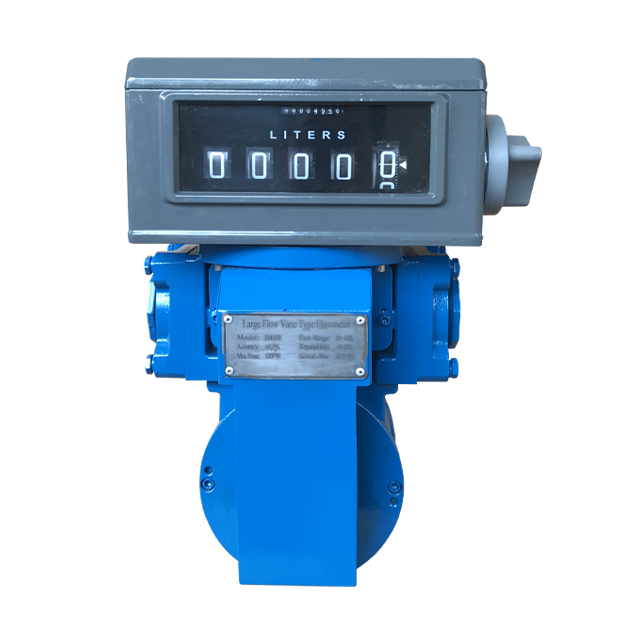

Positive Displacement Vane Meter ZCM-600-M

Availability:
Quantity:

Product Description

It's widely used in filling station,oli company,refineries and distribution of tank truck.
Stepless adjusting mechanism allows a micro adjustment of the meter.
Low head loss.
Simple construction, rotor and blades with easy and low maintenance cost.
Wearing compensation ensure higher accuracy after long-time service.
Special designed wmanifold in the separates from measuring chamber to avoid stress coming from the installation.

Technical Parameter
ModelZCM-600-M
Size50mm/2"
Volume per revolution 0.4L/0.1 US Gallons
Max.flow rate 24m³/H   400L/min

105 US Gallon
Min.flow rate2.4m³/H   40L/min

10.5 US Gallon
Accuracy ±0.2%
Repeatability≤0.05%
Max.operation pressure 8Bar/120PSI/8.3Kg/cm³
Working temperature range-40℃ ~ +60℃
Max.viscosity800cps/3850SSU
Meas.29x23.5x40cm
N.W. 20Kgs
G.W.22Kgs
Package  1pc/Carton
