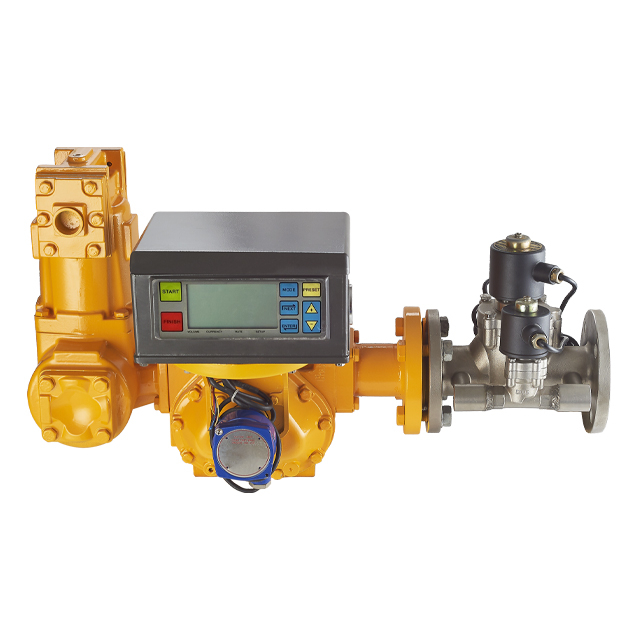

Positive Displacement Flow Meter ZCM-640

Availability:
Quantity:

Product Description

Excellent stepless adjusting mechanism allows a micro adjustment of the meter.
High accuracy and repeatablility over the widest range of flow, superior accuracy at constant flow.
Low maintenace, no metal-to-metal contact in measuring chamber, long life service.
Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
Choice of aluminum, cast iron and stainless steel materials of construction.

Technical Parameter
Size40mm/1.5"50mm/2"80mm/3"100mm/4"150mm/6" and 100mm/4" for option
Flow rate(L/min)25-25038-38055-55075-750115-1150130-1300170-1700225-2250300-3000
Volume Per Revolution0.309L0.681L1.839L5.102L9.507L
Max.pressure20Bar
Accuracy±0.2%
Repeatability≤0.05%
Standard measurementLiter/US Gallon/IMP Gallon
Package1pc/wooden case
N.W.23kgs26kgs40kgs70kgs130kgs
G.W.35kgs38kgs55kgs90kgs155kgs
Meas.54x46x48cm54x46x48cm58x50x56cm76x64x72cm80x65x79cm
