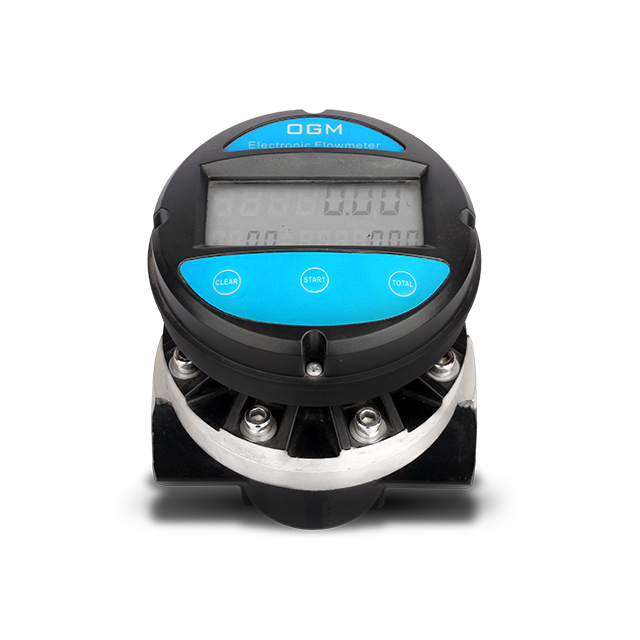

Oval Gear Meter ZCOGM-E

Availability:
Quantity:

Product Description

Aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, applying in the petroleum, chemical, food industry, etc.
Compact size, easy maintenace
Easy to read and operate digital display
Horizontally and vertically flexibility of installation options
Low pressure drop

Technical Parameter
Size 1" 1.5" 2"
Flow rate 200L/min 250L/min 300L/min
Accuracy ±0.5%
Repeatable tolerance ≤0.17%
Max.viscosity 1000CPS
Max.operating pressure 3.4MPa 1.8MPa 1.8MPa
Package 4pcs/ctn 2pcs/ctn 2pcs/ctn
material cast aluminium
N.W. 8kgs 13kgs 14kgs
G.W. 9kgs 14kgs 15kgs
Meas. 35x35x23cm 40x23x41cm 49x28x25cm
