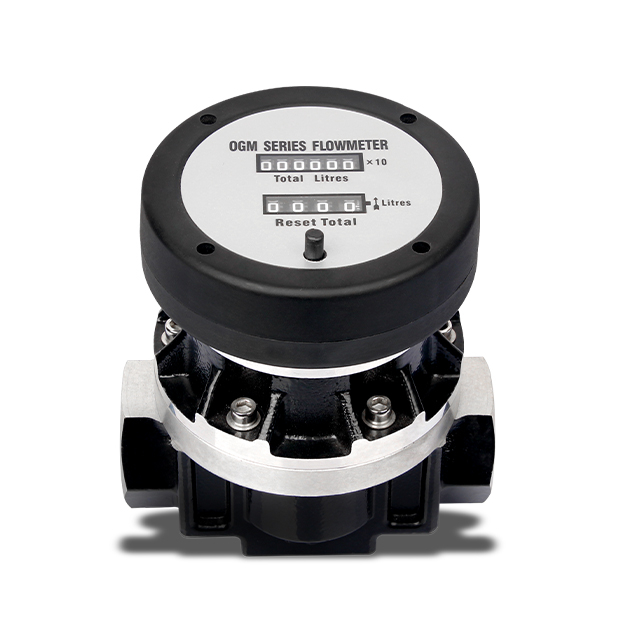

Oval Gear Meter ZCOGM-A

Availability:
Quantity:

Product Description

Aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, applying in the petroleum, chemical, food industry, etc.
Compact size, easy maintenace
Easy to read and operate mechanical display
Horizontally and vertically flexibility of installation options
Low pressure drop

Technical Parameter
Size1"1.5"2"
Flow rate200L/min250L/min300L/min
Accuracy±0.5%
Repeatable tolerance≤0.17%
Max.viscosity1000CPS
Max.operating pressure3.4MPa1.8MPa1.8MPa
Package4pcs/ctn2pcs/ctn2pcs/ctn
materialcast aluminium
N.W.8kgs13kgs14kgs
G.W.9kgs14kgs15kgs
Meas.35x35x23cm40x23x41cm49x28x25cm
