Maker Series

Availability:
Quantity:

Product Description

1

Overview

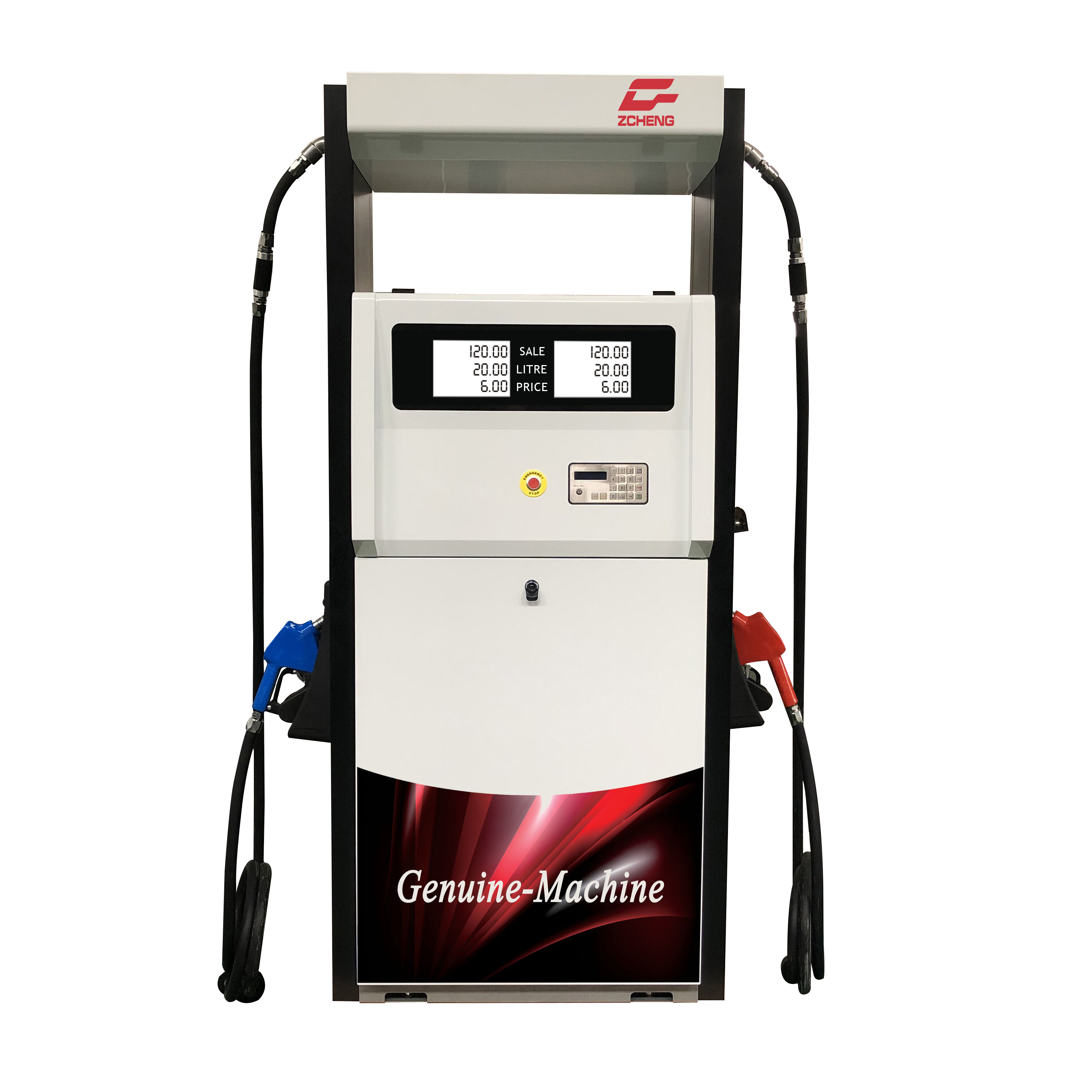

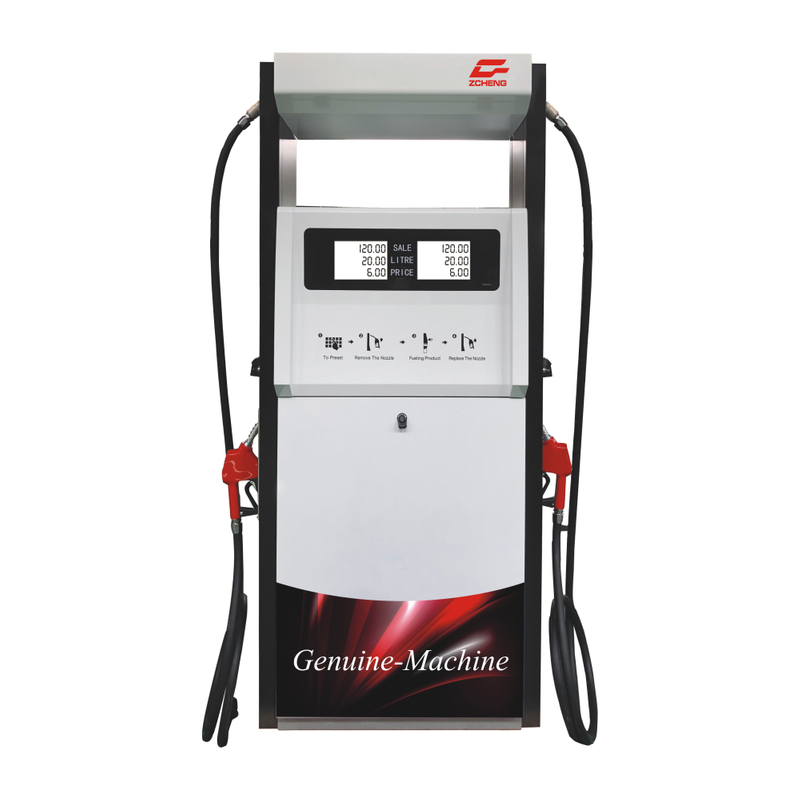

Product Name Fuel Dispenser
Brand Name ZCHENG
Place Of Origin Zhejiang, China
Pump Vane Pump, Gear Pump, Submersible Pump
Flow Meter Bennett, Tokheim, Tatsuno, Gilbarco
Medium Gasoline, Diesel, Kerosene, LPG, Adblue
Nozzle opw, zva, Tatsuno, Husky, Automatic Shut-Off
Hose Number 1,2,3,4,6,8
Lcd Display 664, 885, Digital, Mechanical
Pos/Protocol zcheng, Tatsuno, Gaskit, IFSF, PTS, ITL Integrated

2

Technical Parameter
Ambient Temperature -25°C~ +55°C Inlet Pressure ≥54kPa
Humidity ≤90% Outlet Pressure ≤0.3MPa
Flow Rate 5~60L/min or 5~90L/min Voltage AC 110V/220V/380V(50/60Hz)
Suction Distance 6m(vertical), 50m(horizontal) Power 1HP(0.75kw)
Accuracy ±0.30% Noise ≤80dB(A class)
Repeating Tolerance ≤0.15% Unit Price Range 0.01~999.99
Hose 3m(low hang), 4.5m(high hang) Single Volume Range 0.01~9,999.00
Explosion-proof Signal ExdmbIIAT3 Accumulative Volume Range 0.01~9,999,999,999.00
