Flow Meter ZCM-90

Availability:
Quantity:
Inquire Add to Basket

Product Description

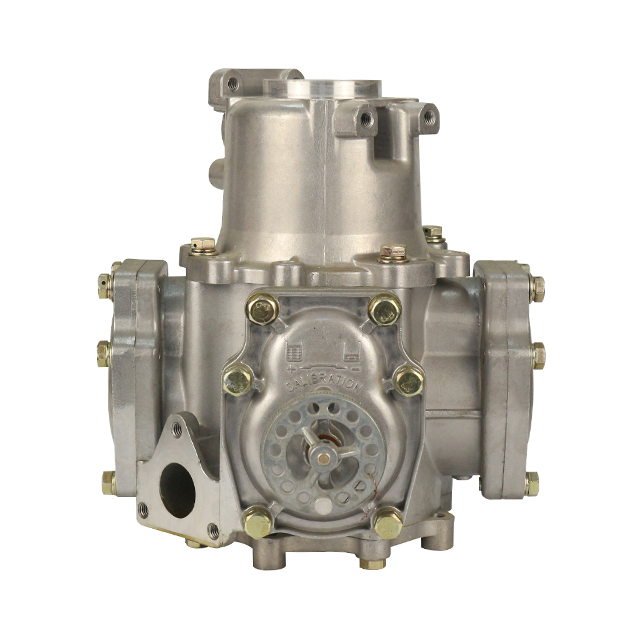

Flow Meter ZCM-90 is made of alloy aluminum with construrtion of stainless steel bush and four pistons positive displacement.
Novel appearance, Small size, High reliability, Good wearability, Precise measure, Long life.
Flow Meter ZCM-90 is built in intelligent pulser, 60 pulses or 100 pulses for option.

Technical Parameter
Flow rate5~90L/min
Discharge rate per revolution0.5L
Adjustable minimum volume0.07%
Accuracy±0.2%
Repeatability≤0.07%
Package2pcs/ctn
N.W.12kgs
G.W.13kgs
Meas.50x28x35cm
