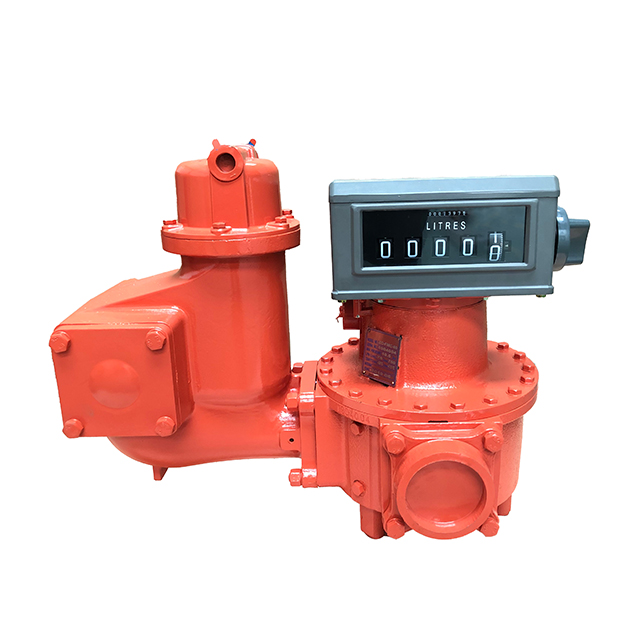

FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact, versatile design can be readily fit into nearly all installations.
Low pressure loss, a true gravity flow meter.
Long service life, low friction ball bearings, fixed cam-type shaft construction give sustained accuracy and long time operation.
Application: blending, batching, dispensing, inventory control and transfering of oils, solvents, chemicals, paints, fertilizer, etc.
Technical Parameter |
Model | FMC-80 |
Size | 80mm/3" |
Flow rate | 75-750L/min |
Max.pressure | 10Bar |
Accuracy | ±0.2% |
Repeatability | ≤0.07% |
Package | 1pc/wooden case |
N.W. | 56kgs |
G.W. | 70kgs |
Meas. | 70x40x58cm |
