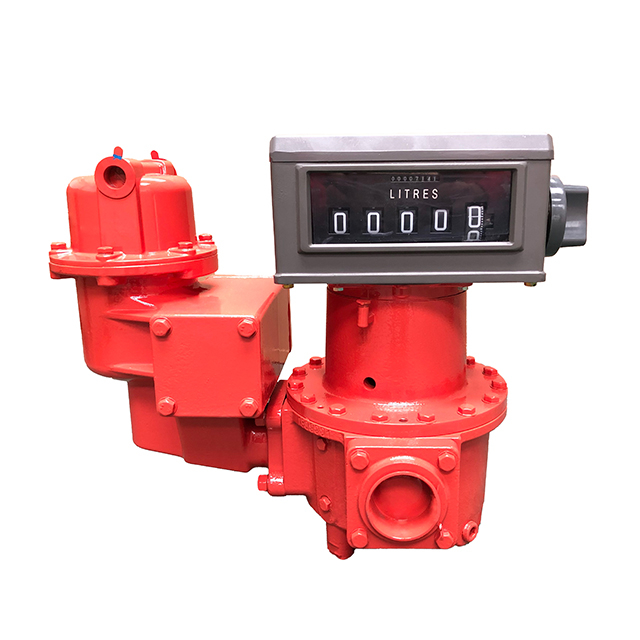

FMC Series PD Rotary Vane Flow Meter FMC-50

Availability:
Quantity:

Product Description

FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact, versatile design can be readily fit into nearly all installations.
Low pressure loss, a true gravity flow meter.
Long service life, low friction ball bearings, fixed cam-type shaft construction give sustained accuracy and long time operation.
Application: blending, batching, dispensing, inventory control and transfering of oils, solvents, chemicals, paints, fertilizer, etc.

Technical Parameter
ModelFMC-50
Size50mm/2"
Flow rate38-380L/min
Max.pressure10Bar
Accuracy±0.2%
Repeatability≤0.07%
Package1pc/wooden case
N.W.42kgs
G.W.57kgs
Meas.59x34x57cm
