Product Description
| Overview | |||||

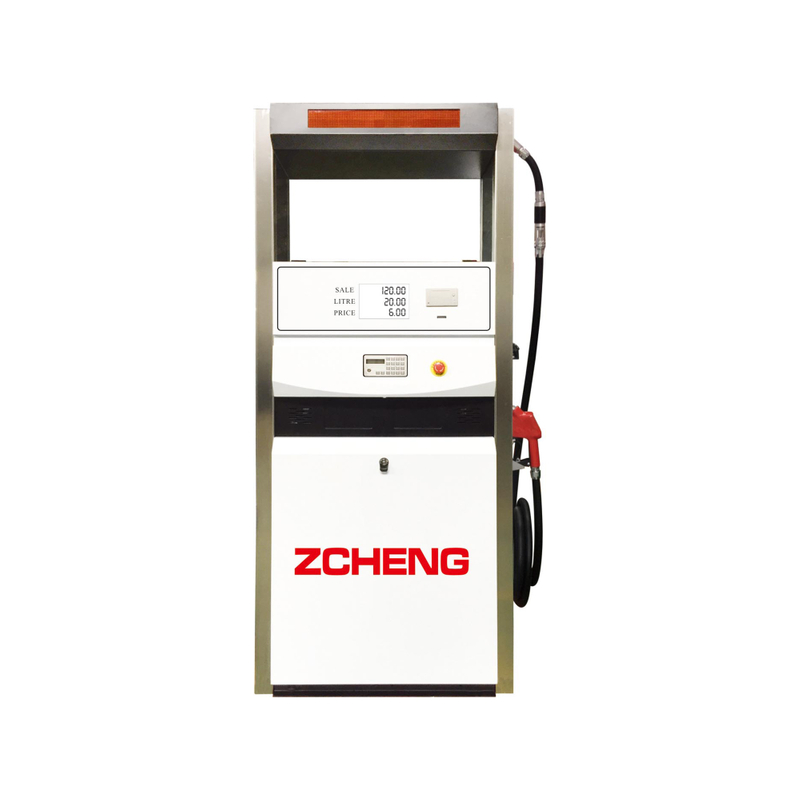

| Product Name | Fuel Dispenser | ||||
| Brand Name | ZCHENG | ||||
| Place Of Origin | Zhejiang, China | ||||
| Pump | Vane Pump, Gear Pump, Submersible Pump | ||||
| Flow Meter | Bennett, Tokheim, Tatsuno, Gilbarco | ||||
| Medium | Gasoline, Diesel, Kerosene, LPG, Adblue | ||||
| Nozzle | opw, zva, Tatsuno, Husky, Automatic Shut-Off | ||||
| Hose Number | 1,2,3,4,6,8 | ||||
| Lcd Display | 664, 885, Digital, Mechanical | ||||
| Pos/Protocol | zcheng, Tatsuno, Gaskit, IFSF, PTS, ITL Integrated | ||||
| Technical Parameter | |||||||||||
| Ambient Temperature | -25°C~ +55°C | Inlet Pressure | ≥54kPa | ||||||||
| Humidity | ≤90% | Outlet Pressure | ≤0.3MPa | ||||||||
| Flow Rate | 5~60L/min or 5~90L/min | Voltage | AC 110V/220V/380V(50/60Hz) | ||||||||
| Suction Distance | 6m(vertical), 50m(horizontal) | Power | 1HP(0.75kw) | ||||||||
| Accuracy | ±0.30% | Noise | ≤80dB(A class) | ||||||||
| Repeating Tolerance | ≤0.15% | Unit Price Range | 0.01~999.99 | ||||||||
| Hose | 3m(low hang), 4.5m(high hang) | Single Volume Range | 0.01~9,999.00 | ||||||||
| Explosion-proof Signal | ExdmbIIAT3 | Accumulative Volume Range | 0.01~9,999,999,999.00 | ||||||||
