Bottom Valve ZCBV-80A

Availability:
Quantity:

Product Description

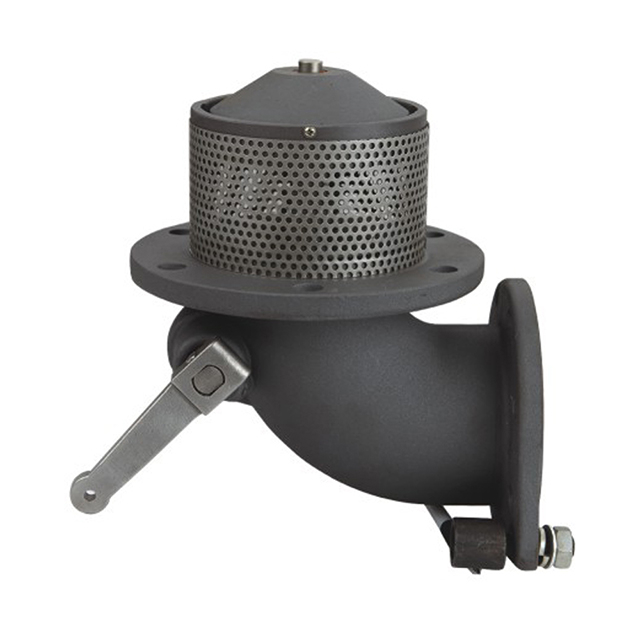

Bottom valve, with another name of emergency shut-off valve, which is installed on the bottom of tank, built in shut-off groove, bottom valve body will disconnect along the groove to realize the disconnection of the bottom pipe channel from the tank while no effect on seal when there is a crashed. To avoid leakage from the tank and make sure the safe transportation. With Oxidation treatment on the aluminum body, it looks nice and high anti-Corrosion, high quality stainless steel filter and high flow rate.

Technical Parameter
Size3"
Max. flow rate1500L/min
Working pressure0.6MPa
Temperature range-20°C ~ 70°C
Open wayManual
Air pressure required0.4~0.8MPa
Connection modeFlanged
MediumGasoline, Diesel, Kerosene
