ZCP-YB-50/65/80/100

Availability:
Quantity:

Product Description

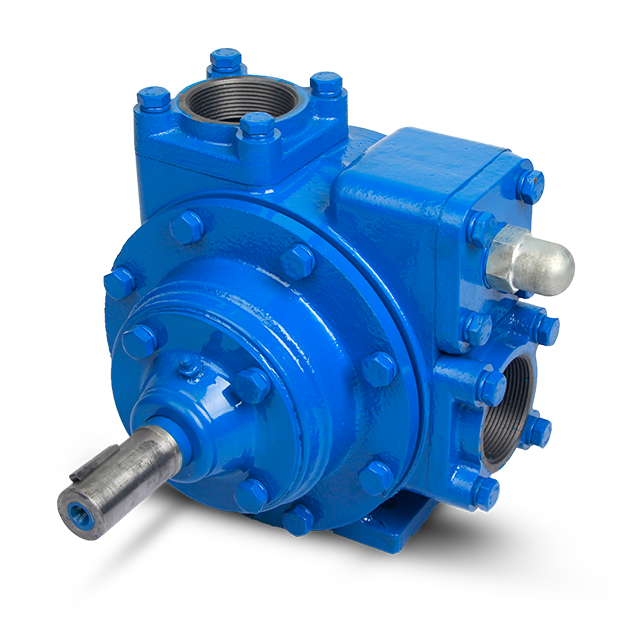

YB series self-priming rotary vane pump with built-in bypass valve uses the rotor with sliding vanes to drive the liquid. The material is nodular iron with sliding vanes, a special self lubricating structure, excellent performance, which can be used to transfer viscosity and volatile liquid, lower than those of the same pump power. The most advantage is transmitting large flow in low speed, widely used in oil tank truck, fleet refueling, aviation fuel, such as large flow conveying occasions. It can be driven by belt transmission, motor reducer, coupling and diesel engine driven by a variety of ways.


Technical Parameter
ModelZCP-YB-50ZCP-YB-65ZCP-YB-80ZCP-YB-100
Flow Rate(m3/h)162860115
Inlet Pressure(MPa)≤1.0≤1.0≤1.0≤1.0
Differential pressure(MPa)0.50.50.50.5
rpm (r/min)650500650500
Power(kW)2.24.07.518.5
Current(A)<8<12<15<36
Mediafuel, kerosene, diesel
